HVAC Design (8 Key Factors For Comfort & Efficiency)

HVAC design is the process of planning a heating and cooling system so it delivers even comfort and low energy use for the specific home it serves. It happens before any equipment is chosen, and it is the biggest reason two identical furnaces can perform completely differently in two houses. Good design accounts for your home’s size, layout, insulation, and climate, then matches equipment and ductwork to those realities. Below are the eight factors that separate a system you never think about from one that leaves you too hot, too cold, or paying too much in Maple Grove.

• Why design matters: Understand why planning outweighs equipment brand for comfort.
• The eight factors: See what a proper design actually accounts for.
• Getting it right: Learn what to ask before any equipment is installed.

What Is HVAC Design and Why Does It Matter?

HVAC design determines how well your system performs long before installation day. Even the best equipment underperforms if the design behind it is wrong.

Why Does Design Matter More Than Equipment Brand?

Design matters more than brand because even premium equipment fails to deliver comfort or efficiency when it is sized, placed, or ducted incorrectly. A high-efficiency furnace installed with undersized ducts or poor airflow will run harder, wear faster, and still leave rooms uneven. According to ENERGY STAR, improper installation can reduce system efficiency by up to 30 percent, costing more on utility bills and possibly shortening equipment life. That single figure explains why careful design is the highest-value part of any heating and cooling investment.

• Brand is not enough: Top equipment underperforms with poor design.
• Efficiency at stake: Bad installation can cut efficiency sharply.
• Comfort at stake: Design errors create hot and cold spots.
• Cost at stake: Poor design raises bills for the system’s whole life.

8 Key Factors in HVAC Design

A complete design weighs how your home is built, how air moves through it, and how you live in it. These eight factors are the ones a qualified contractor evaluates.

1. Accurate Load Calculation

A load calculation determines exactly how much heating and cooling your home needs, and it is the foundation of every good design. Contractors use a method called Manual J, which accounts for square footage, insulation, window area, orientation, and local climate to produce a precise number. Skipping this step and guessing from square footage alone is the most common design mistake, and it leads directly to equipment that is the wrong size. Everything that follows in the design depends on getting this number right.

• Manual J standard: The industry method for calculating true load.
• Accounts for details: Insulation, windows, orientation, and climate all factor in.
• Foundation step: Every later decision builds on this number.

2. Correct Equipment Sizing

Correct sizing matches equipment capacity to the calculated load, avoiding the twin problems of oversizing and undersizing. An oversized system blasts to temperature and shuts off in short cycles, which wastes energy, wears parts, and never dehumidifies properly. An undersized system runs constantly and still struggles on the coldest and hottest days. Bigger is not better here, and the goal is a system matched precisely to the load so it runs in longer, steadier, more efficient cycles.

• Avoid oversizing: Too large means short cycling and poor humidity control.
• Avoid undersizing: Too small means constant running and weak performance.
• Match the load: Proper sizing produces steady, efficient cycles.

3. Thoughtful Ductwork Design

Ductwork design controls how conditioned air actually reaches each room, and poorly designed ducts undermine even perfectly sized equipment. Ducts that are too small, too long, or badly routed create pressure problems, noise, and rooms that never get enough air. Leaky ducts running through unconditioned attics or crawlspaces waste a large share of what the system produces. Good design sizes and seals the ducts to deliver balanced airflow to every room the system is meant to serve.

• Proper sizing: Ducts must match the system’s airflow needs.
• Sealing matters: Leaks in unconditioned spaces waste energy.
• Balanced delivery: Good routing gets air to every room evenly.

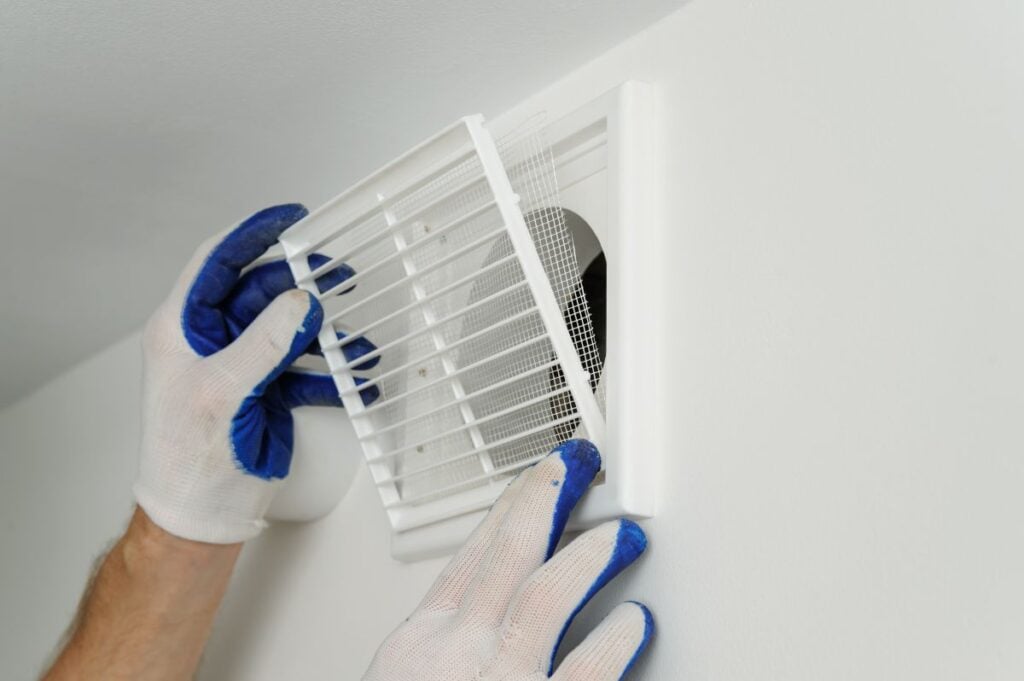

4. Proper Airflow and Ventilation

Airflow design ensures conditioned air circulates correctly and stale air is refreshed, both of which affect comfort and health. Even a well-sized system feels wrong if registers are poorly placed or return air is restricted, leaving some rooms stuffy and others drafty. Ventilation planning also brings in fresh air, which tightly built modern homes need to avoid trapping stale, humid, or contaminated air. A good design balances supply and return airflow while accounting for the home’s ventilation needs.

• Register placement: Where air enters shapes how a room feels.
• Return air: Restricted returns choke performance and comfort.
• Fresh air: Ventilation prevents stale, unhealthy indoor air.

5. Zoning for Multi-Level Homes

Zoning divides a home into areas with independent temperature control, which is often essential in the two-story homes common around Maple Grove. Without zoning, a single thermostat forces one setting on a house where heat naturally rises, leaving the upstairs hot while the main floor feels fine. Designing zones into the system lets each level or area hold its own temperature. For multi-level homes and houses with rooms that never feel right, zoning is a design choice worth weighing early.

• Independent control: Each zone holds its own setting.
• Two-story fix: Solves the hot-upstairs, cold-downstairs problem.
• Plan early: Zoning is easiest to design in from the start.

6. Indoor Air Quality Planning

Indoor air quality planning builds filtration, humidity control, and ventilation into the design rather than bolting them on later. Minnesota’s sealed winter homes trap dust, allergens, and dry air, while humid summers invite the opposite problem. A thoughtful design considers filtration level, whether a humidifier or dehumidifier is warranted, and how fresh air enters the home. Addressing air quality during design is far more effective and less costly than adding equipment piecemeal after the fact.

• Filtration level: Design sets how much the system cleans the air.
• Humidity control: Humidifiers or dehumidifiers address seasonal extremes.
• Built in, not bolted on: Planning beats piecemeal additions later.

7. Energy Efficiency Ratings

Efficiency ratings guide equipment selection so the system meets real performance goals rather than just minimums. SEER2 measures cooling efficiency and AFUE measures furnace efficiency, and higher numbers mean lower operating costs over the system’s life. Good design weighs these ratings against upfront cost and how hard the system will work in Minnesota’s climate. Choosing the right efficiency tier is a design decision, balancing the higher price of premium equipment against years of energy savings.

• Know the ratings: SEER2 for cooling, AFUE for heating.
• Higher is cheaper to run: Better ratings lower operating costs.
• Balance the cost: Weigh upfront price against long-term savings.

8. Thermostat and Control Strategy

Control strategy determines how you actually operate the system day to day, and it can make or break the comfort a good design delivers. Smart and programmable thermostats let you schedule temperatures, control zones, and adjust settings remotely, squeezing more efficiency from the equipment. In a zoned system, the control layer is what coordinates the whole design. Choosing the right thermostats and controls turns a well-designed system into one that is also easy to live with.

• Smart scheduling: Programmable controls optimize daily use.
• Zone coordination: Controls manage a zoned system’s operation.
• Ease of use: The right controls make good design effortless.

Frequently Asked Questions

Homeowners planning a new system ask these most often. Short answers follow.

What is a Manual J load calculation?

A Manual J is the industry-standard method for calculating exactly how much heating and cooling a home needs. It accounts for square footage, insulation, windows, orientation, and climate rather than guessing from size alone. It is the foundation of any proper HVAC design.

Can I reuse my existing ductwork?

Often yes, but only after a contractor evaluates whether it is sized, sealed, and routed well enough for the new system. Undersized or leaky ducts can undermine even new equipment. A good design confirms the ducts fit the plan before relying on them.

Does HVAC design cost extra?

Reputable contractors include proper load calculation and design as part of a quality installation rather than charging separately. The value shows up in lower bills and even comfort for the life of the system. Be cautious of any quote that skips the calculation entirely.

How do I know if my current system was designed well?

Uneven room temperatures, short cycling, high bills, and humidity problems are common signs of a design or sizing issue. A professional assessment can pinpoint whether the problem is the equipment or the design behind it. Many comfort complaints trace back to the original design.
